Backup Matrix⚓
Summary⚓
The following will be a matrix showing what machines back up to where, as well as what software is responsible for the backups.
Backup Matrix⚓
| Hardware | OS | Backup Software | Snapshot Software | Snapshots | Local Backup | Cloud Backup | NAS | NAS to B2 | Backup Interval |
|---|---|---|---|---|---|---|---|---|---|
| System76 | Manjaro | Vorta Backup | Timeshift | Yes | Yes | No | Yes | Yes | Daily: Timeshift: 12pm Vorta: 2am |
| Macbook Pro 13" (Dave) | MacOS | Backblaze | Carbon Copy Cloner (CCC) | Yes | No | Yes | Yes | No | Backblaze: Continuous / CCC: First Sunday Monthly at 12am |
| Macbook Pro 13" (Maria) | MacOS | Backblaze | Time Machine | Yes | No | Yes | Yes | No | Backblaze: Continuous / Time Machine: Monthly |
| HP Z620 | XCP-NG | Xen Orchestra | Xen Orchestra | Yes | No | No | Yes | Yes | Full: 1st of month at 12am Delta: Every 7 days at 4am |
| HP Z620 (Plex) | Ubuntu | Cloudberry Backup | Xen Orchestra | Yes | No | No | Yes | Yes | Monthly: First day of month at 2am |
| Intel Nuc | Windows 7 | Backblaze | N/A | No | No | Yes | No | No | Continuous |
Backup Flow
OS drive snapshot → Local Internal Storage (~/Storage) → NAS (see Vorta Backup)
Local Internal Storage (~/Storage) → NAS (mounted at /mnt/backups) → NAS to B2
- Continuous backup of:
- OS drive
- Sandisk flash drive
- 3TB external drive
OS drive only ---> NAS (mounted at smb://192.168.1.6/Carbon Copy Cloner_Daves MBP)
- Continuous backup of:
- OS drive
- Flash drive
OS drive only ---> NAS (mounted at smb://192.168.1.6/Time Machine Folder_Maria)
All running VMs → NAS (mounted at \192.168.1.6 : /volume1/Xen-Backups/Delta-Backups) → NAS to B2
All running VMs → NAS (mounted at \192.168.1.6 : /volume1/Xen-Backups/Full-Backups) → NAS to B2
Videos (/home/dave/Videos) → NAS (mounted at /mnt/Plex/Videos) → NAS to AWS S3 Deep Glacier Archive.
- Continuous backup of:
- OS drive
- External drive# 1 & External drive #2

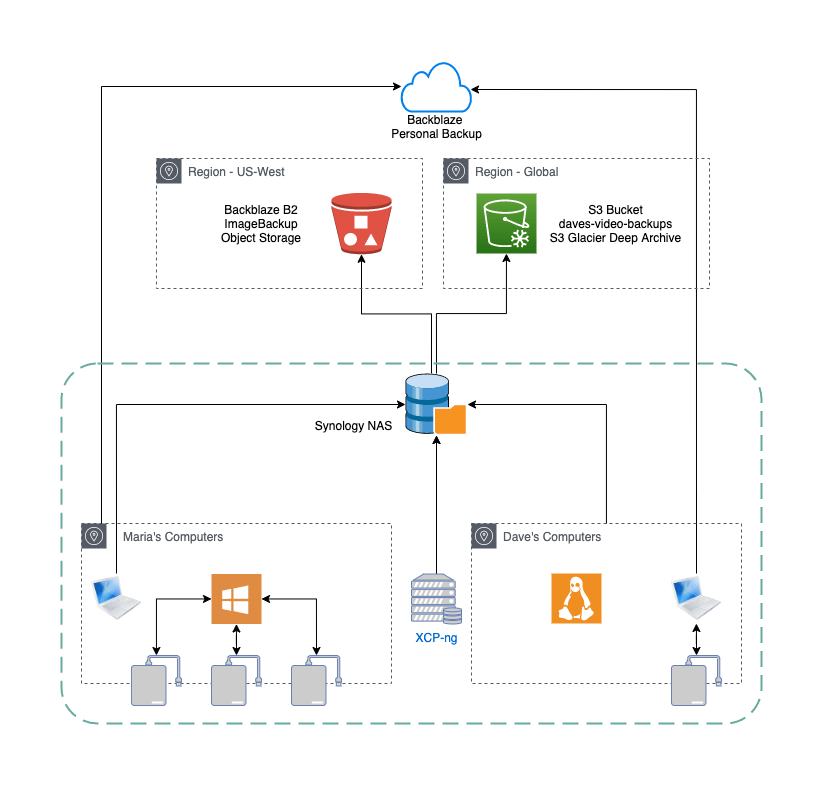

Backup Diagram⚓
